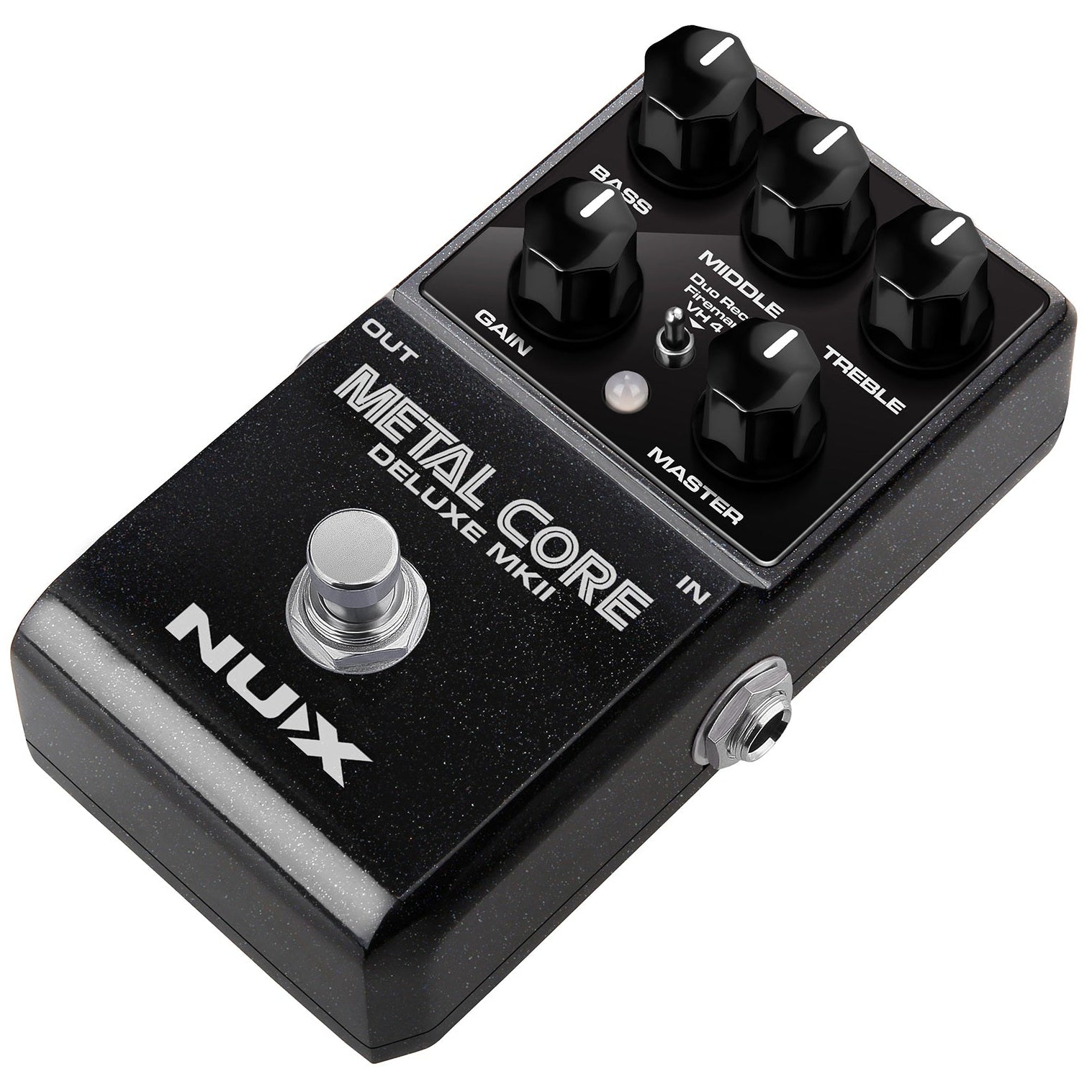

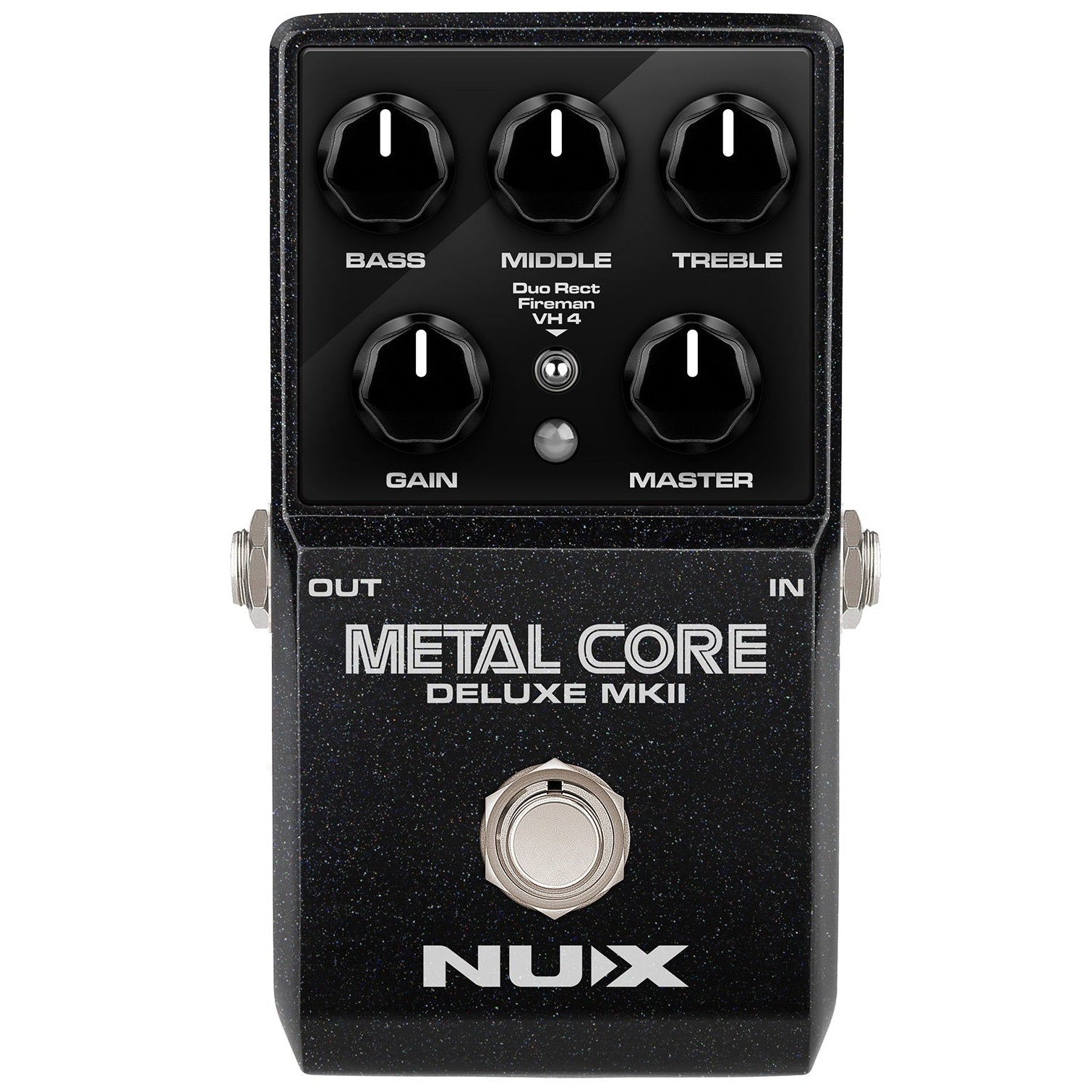

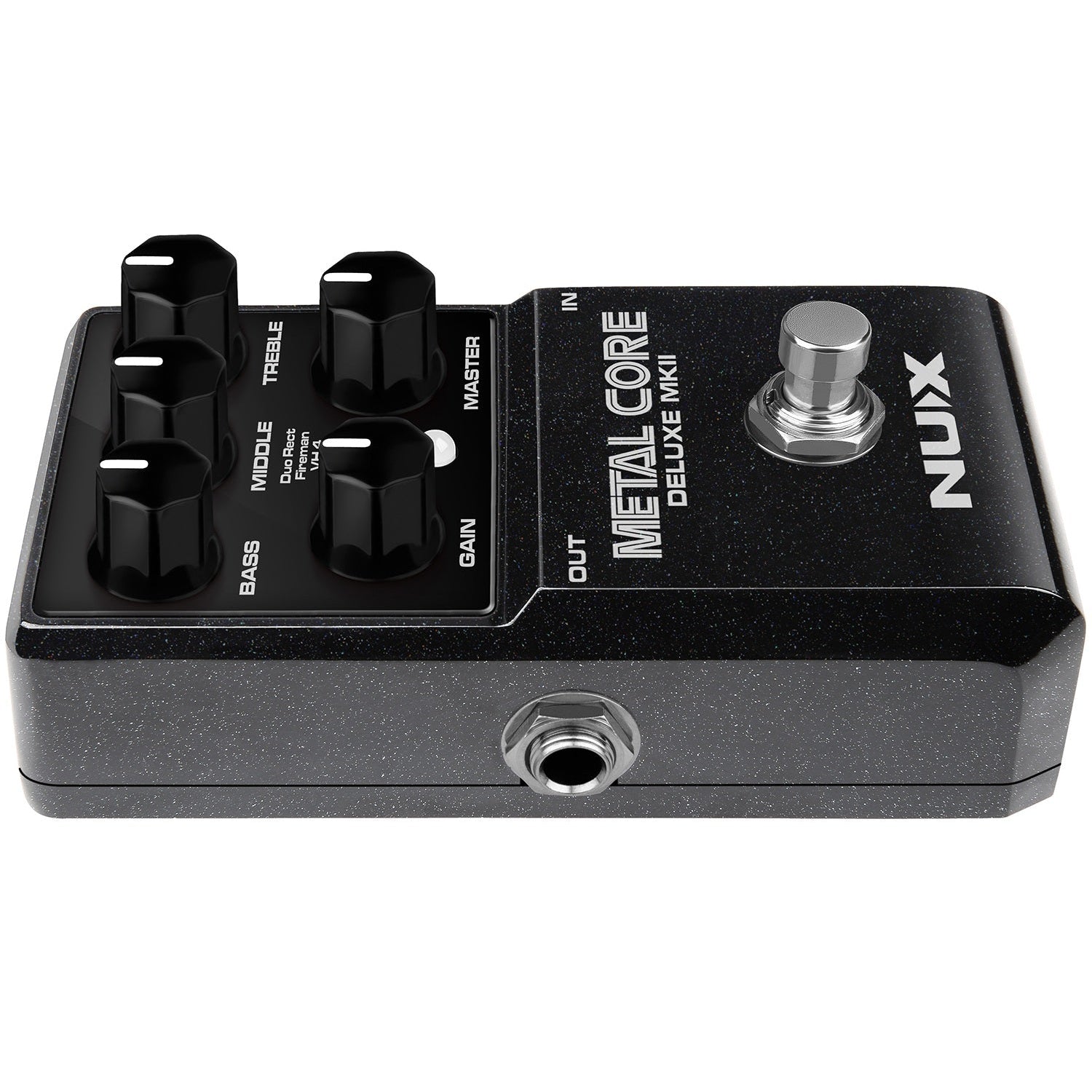

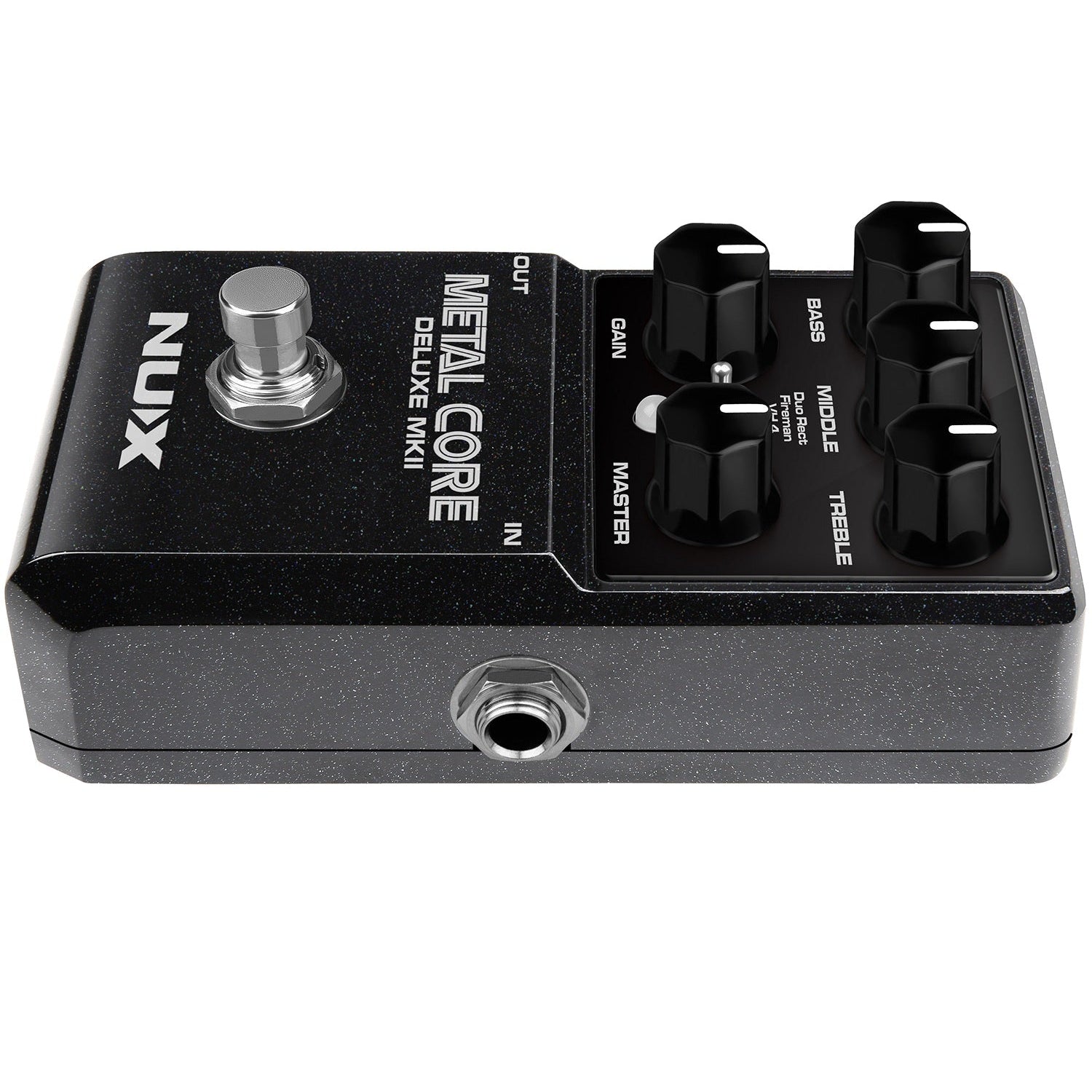

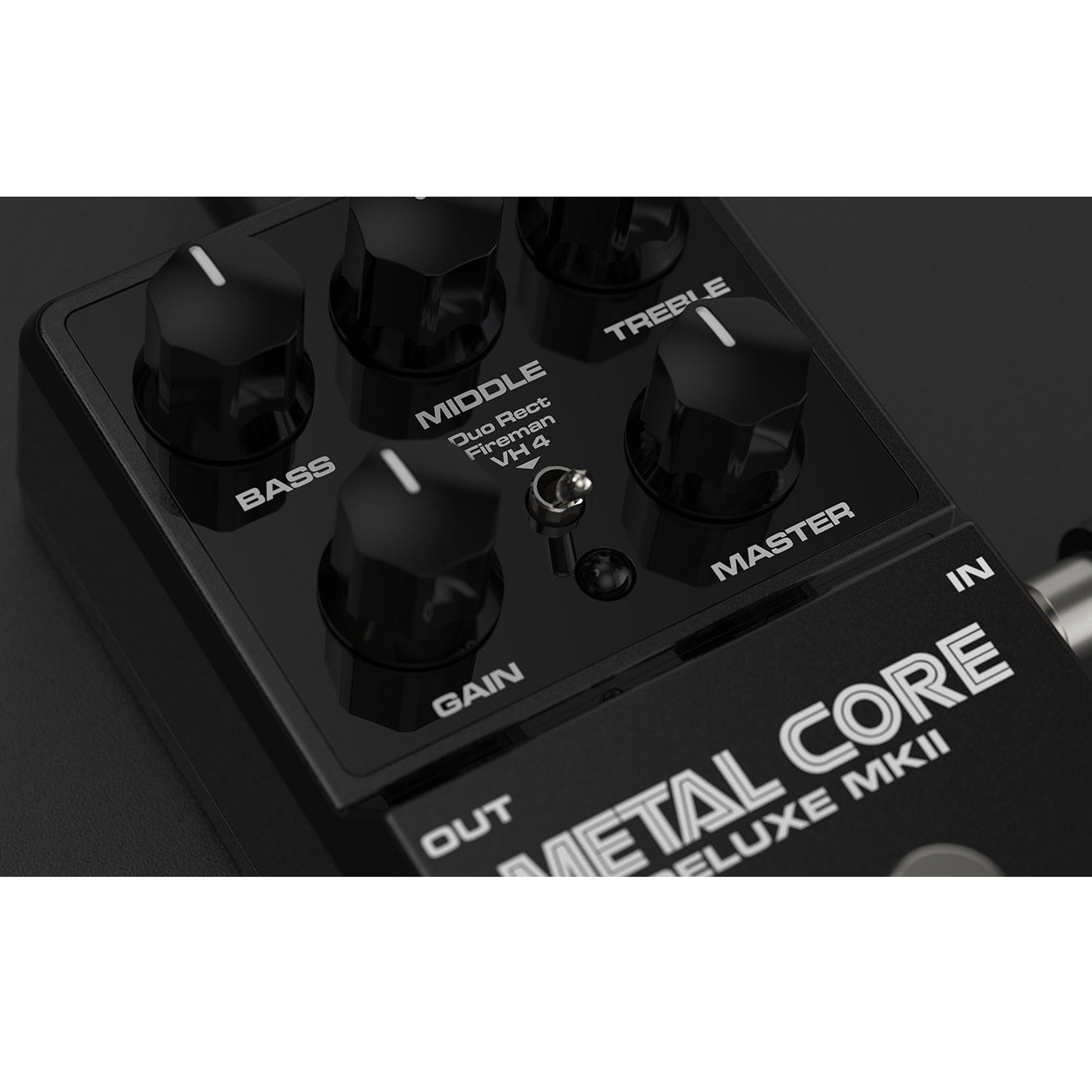

Nu-X Metal Core Deluxe mkII Guitar Pedal

Nu-X Metal Core Deluxe mkII Guitar Pedal

Evolving from the popular Metal Core Deluxe pedal, the mkII version now has 3 selectable amplifier models based on much-revered high gain valve amplifiers. Now with an additional Middle control, the 3-band EQ pairs with Gain and Master to offer a full completement of real amplifier controls, with settings stored into each of the 3 amp models for fast recall.

Metal Core Deluxe mkII goes a step further to include IR cabinet simulation, meaning that it can be used directly into a full-range PA system, or without IR simulation into the front of a guitar amplifier as a hard-edged drive pedal. Whichever wiring method is used, Metal Core Deluxe mkII delivers the full breadth of metal tones for hard rock to thrash.

Specification:

• 3 distinct high gain amplifier models
• 3-band EQ
• Switchable IR cabinet simulation
• Settings auto-stored for each model
• True bypass
• USB-C for firmware updates & future software
• Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
• Power supply 9Vdc power adaptor required
• DC input connection DC5521 jack (for optional adaptor - pin-negative)
• Current consumption <120mA
• Controls Gain, Master, Bass, Middle, Treble, Model switch
• Modes Duo Rect, Fireman, VH4
• Input 6.3mm jack
• Output 6.3mm jack
• Input impedance 1M ohm
• Output impedance 1k ohm
• Dynamic range 104dB
• Dimensions 122 x 72 x 47mm
• Weight 270g
