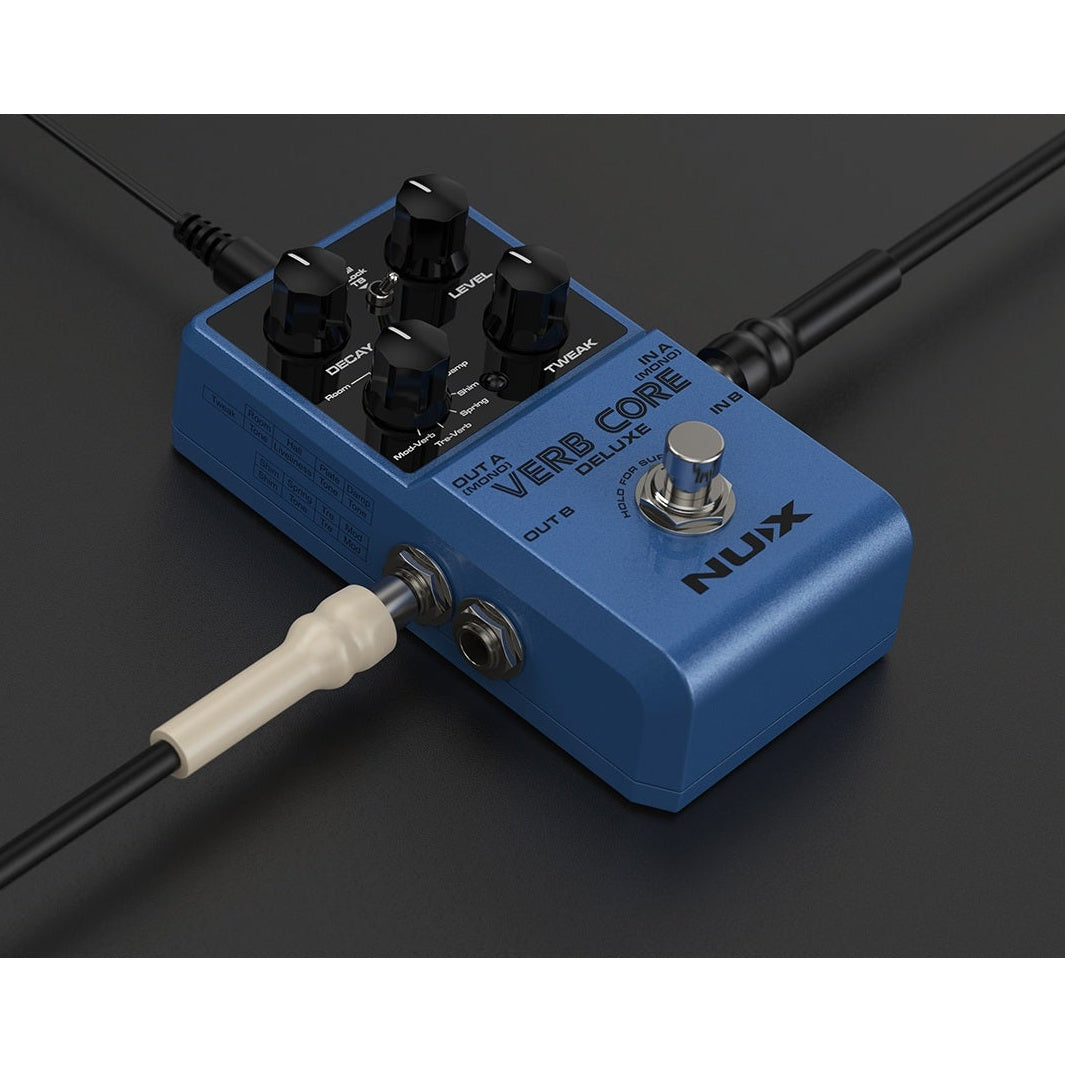

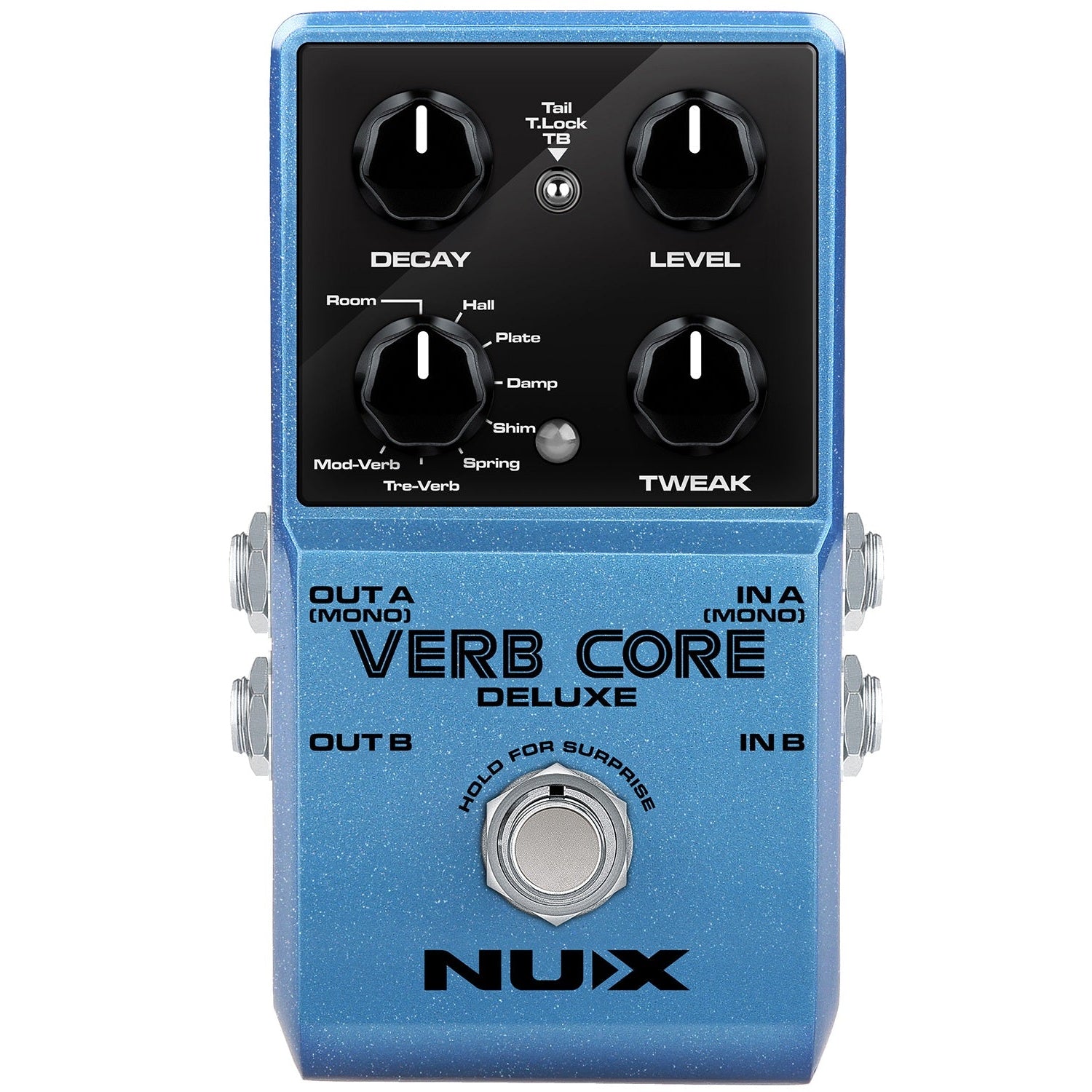

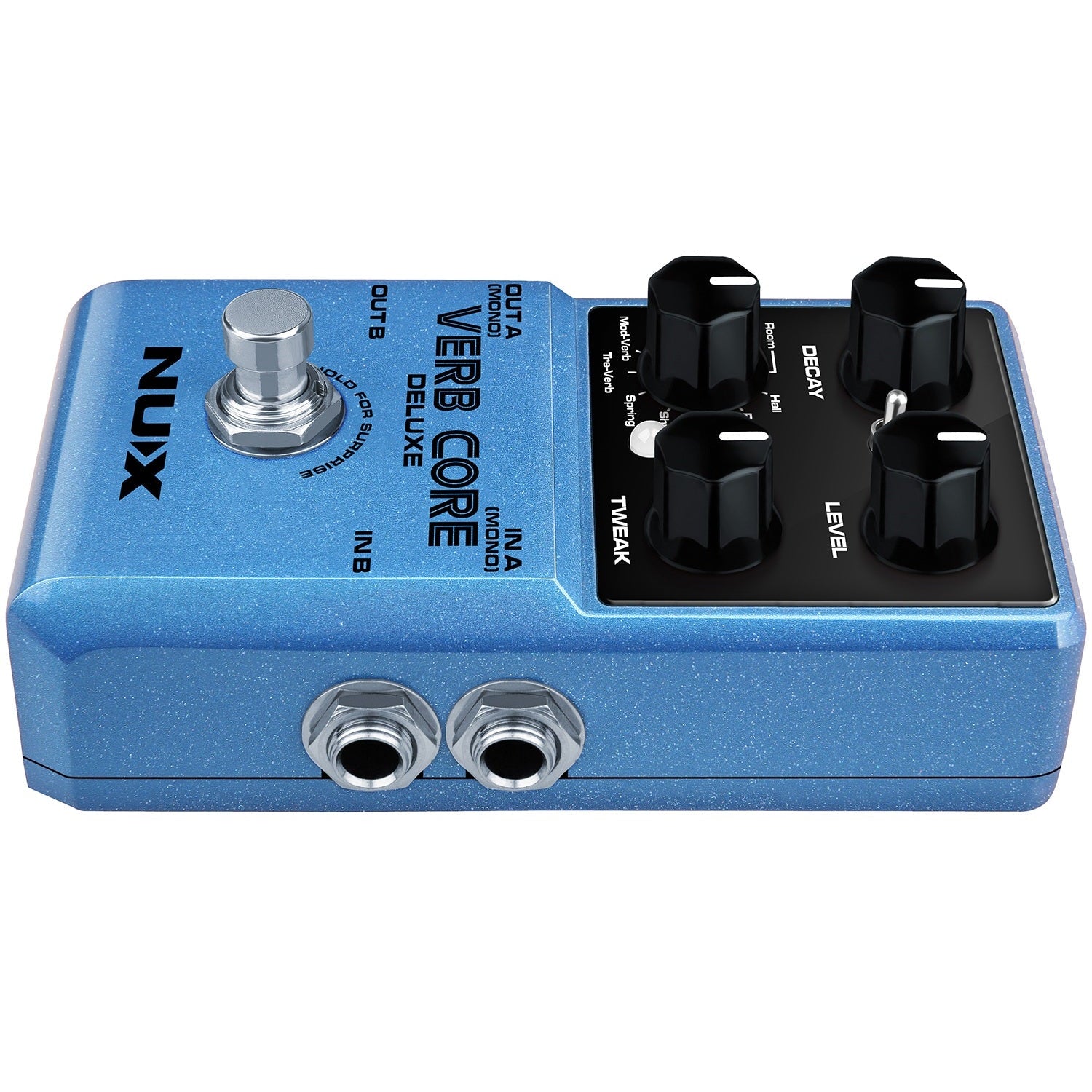

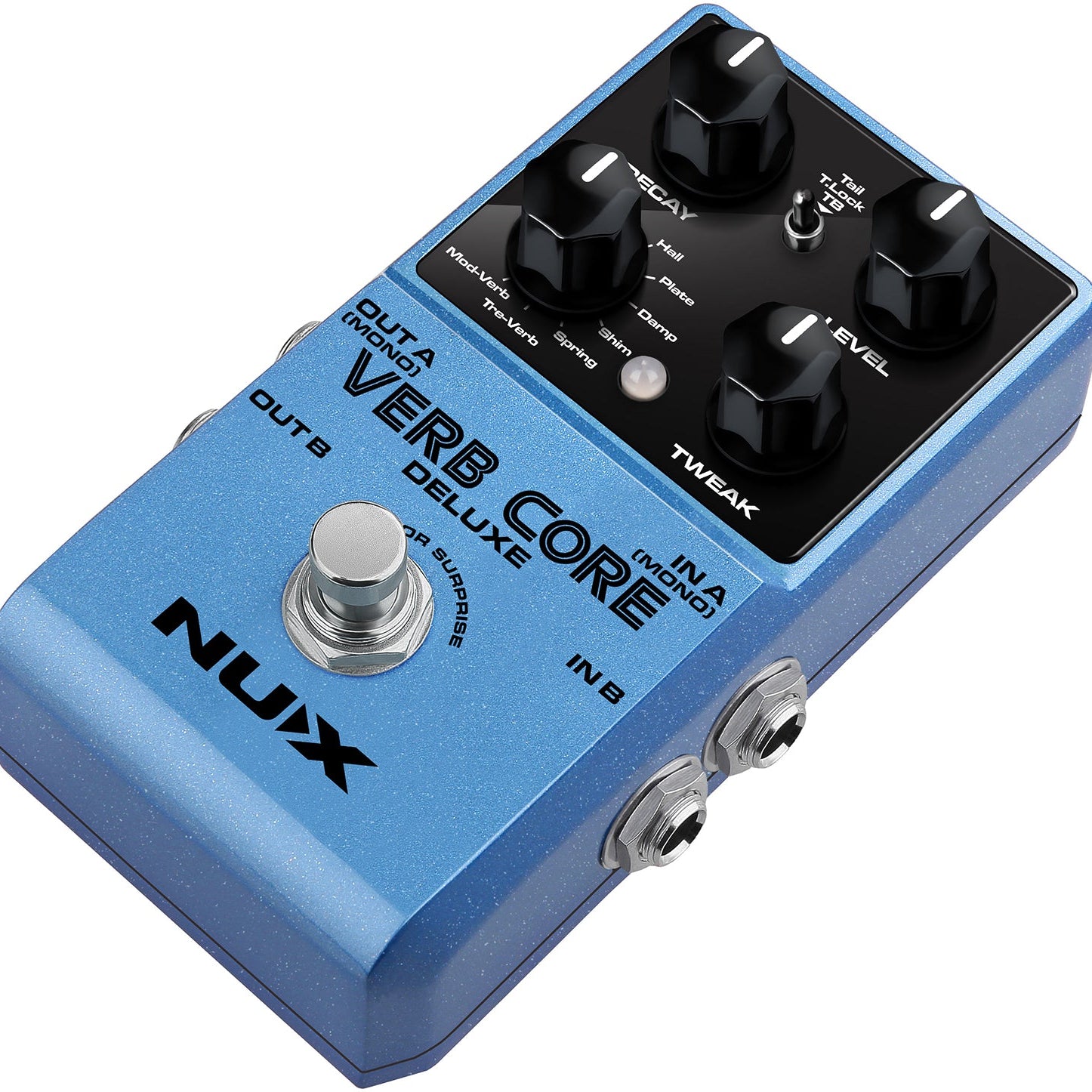

Nu-X Verb Core Deluxe Electric Guitar Reverb Effects Pedal

Nu-X Verb Core Deluxe Electric Guitar Reverb Effects Pedal

The Nu-X Verb Core Deluxe offers 8 different reverb effects in a single, straightforward stomp box format. A selection of classic and contemporary reverb types are available, with new features such as buffered tail bypass and kill dry functions. Each reverb type has adjustable Decay, Level and Tweak, which affects a different parameter depending upon the delay type selected.

The dry signal follows an all-analog signal path, keeping the signal pure and helping to avoid unwanted noise. If you need a reverb on your pedal board, this could be the answer to all your needs.

Specification:

• Mono or full stereo signal path
• True bypass or buffered with reverb tails
• 8 distinct reverb types
• Hold the footswitch for additional freeze function
• USB-C port for firmware updates
• Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
• Power supply 9Vdc power adaptor required
• DC input connection DC5521 jack (for optional adaptor - pin-negative)
• Current consumption<120mA

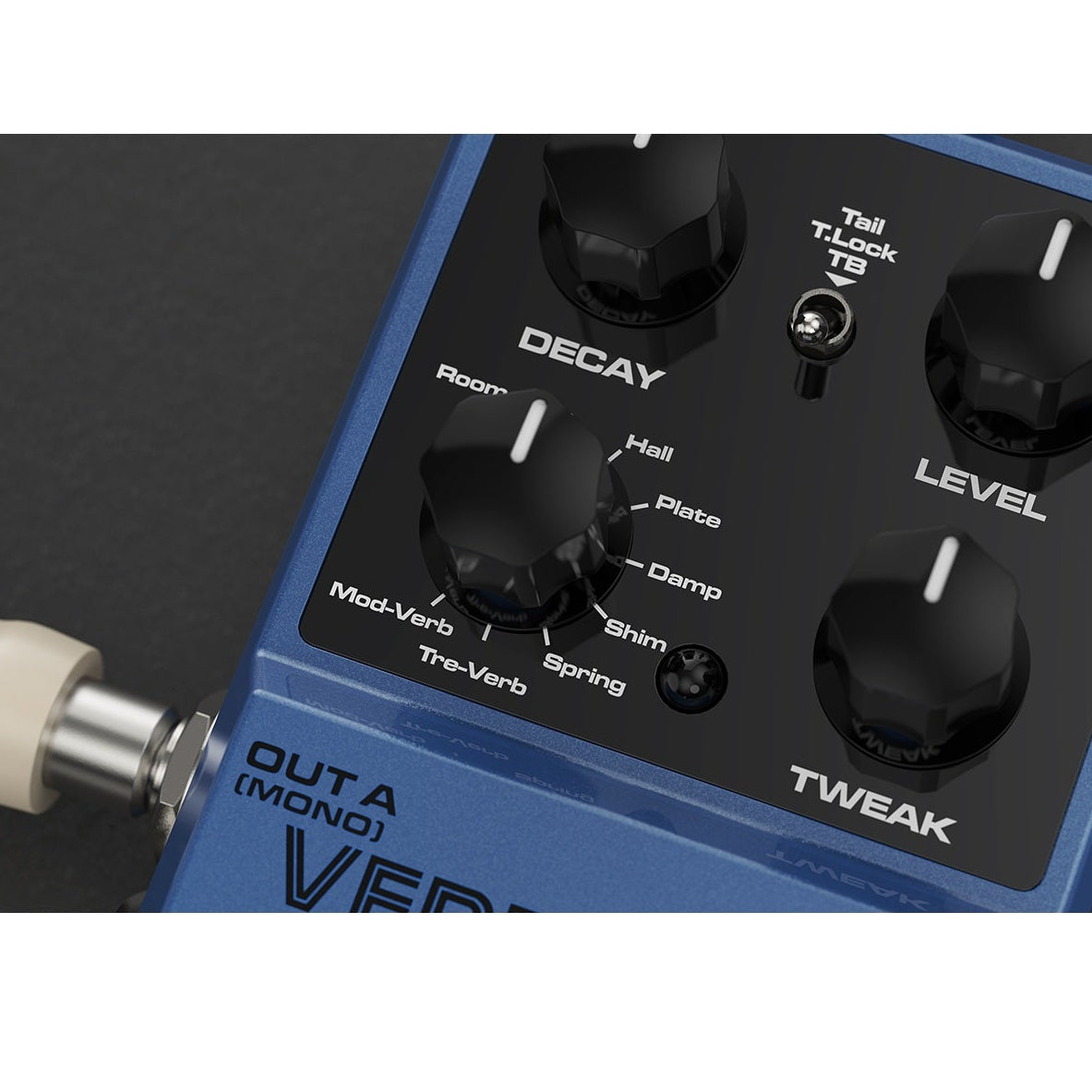

• Controls Decay, Level, Tweak, Reverb type
• Modes Room, Hall, Plate, Damp, Shim, Spring, Tre-verb, Mod-verb
• Inputs L+R 6.3 mm mono jack
• Outputs L+R 6.3 mm mono jack
• Sampling format 48 kHz, 24-bit
• Input impedance 1 M ohm
• Output impedance 1k ohm
• Dynamic range 104 dB
• Dimensions 122 x 72 x 47 mm
• Weight 270 g
